This model is about Concentrated Solar Tower (CST) for power generation by the use of Gas Turbine Cycle (GTC) with different working gases. The plant is designed for power generation and seawater desalination by the aid of Multi-Effect Distillation (MEDpf) combined with Reverse Osmosis (ROerd) with energy recovery devices (PEX). The desalination part has been connected to the intercooler via steam generator (SG) to supply the required steam for the 1st MED effect. Organic Rankine Cycle (ORC) is attached to the final HEX to use the exhaust gases for power generation. ORC would serve the auxiliaries across the plant. Users can assign the grid needed power. The load power from the user is mainly supplied from the GTC. User can obtain all design aspects such as:
1-Design aspects for GTC.
2-Energy and Exergy streams are calculated.
3-Working fluid mass flow rate through the cycle.
All cycles are prepared for dynamic and fixed-point modeling. All cycles are designed for electric power generation. Users can change the working fluid by assigning the specific heat capacity of the selected gas type. Users can switch between solar and gas-fired combustion chambers. The Plant contains the following:
1-Low pressure compressor.
2-Intercooler.
3-Steam generator.
4-Multi-effect distillation (parallel feed configuration) combined with reverse osmosis.
5-High pressure compressor.
6-Heat exchanger.
7-Combustion chamber I (CST) solar tower.
8-High pressure turbine.
9-Combustion chamber II (CST) solar tower.
10-Low pressure turbine.
11-The exhaust from the Low-pressure turbine will be used as a power source for the Organic Rankine Cycle (ORC=3 working fluids).

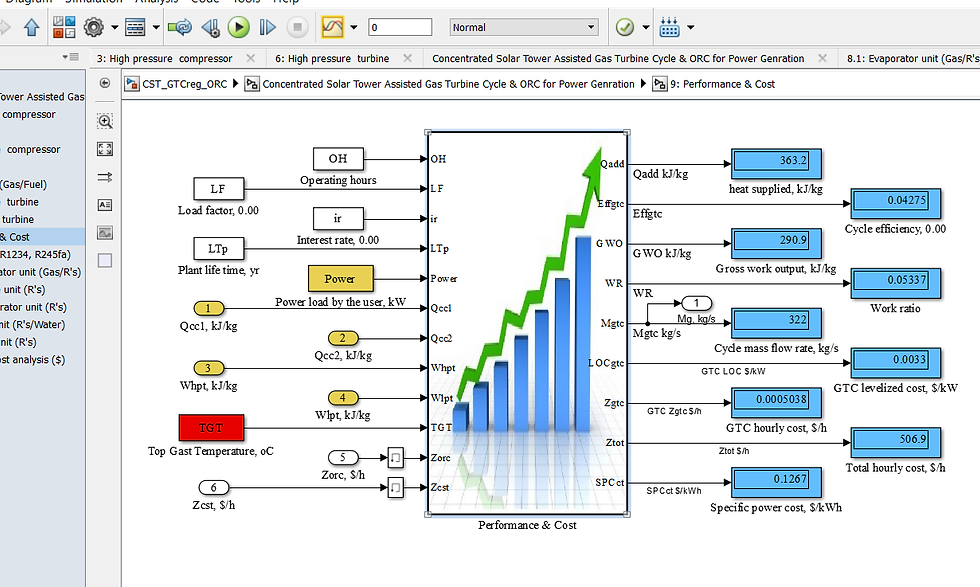

12-Cost & Performance.

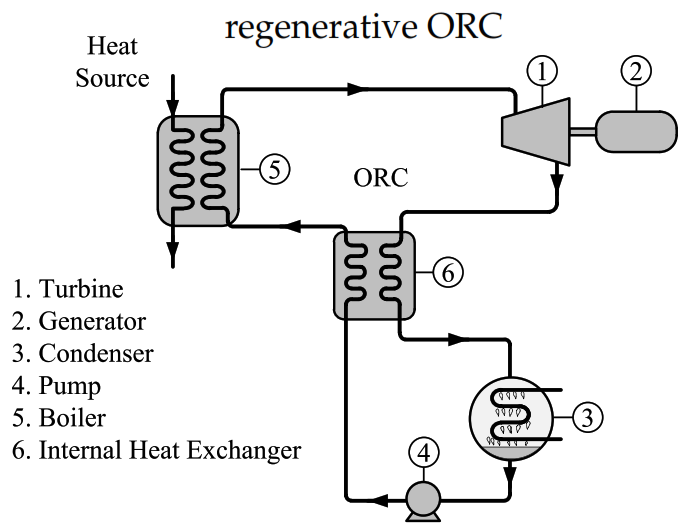

The ORC contains:
1-BHX for thermal power.
2-Turbine.
3-Recuperator.
4-Condenser.
5-Pump.
6-Three working fluids are considered for the ORC.**Watch the tutorial video: https://youtu.be/AePV8MqCT5w
