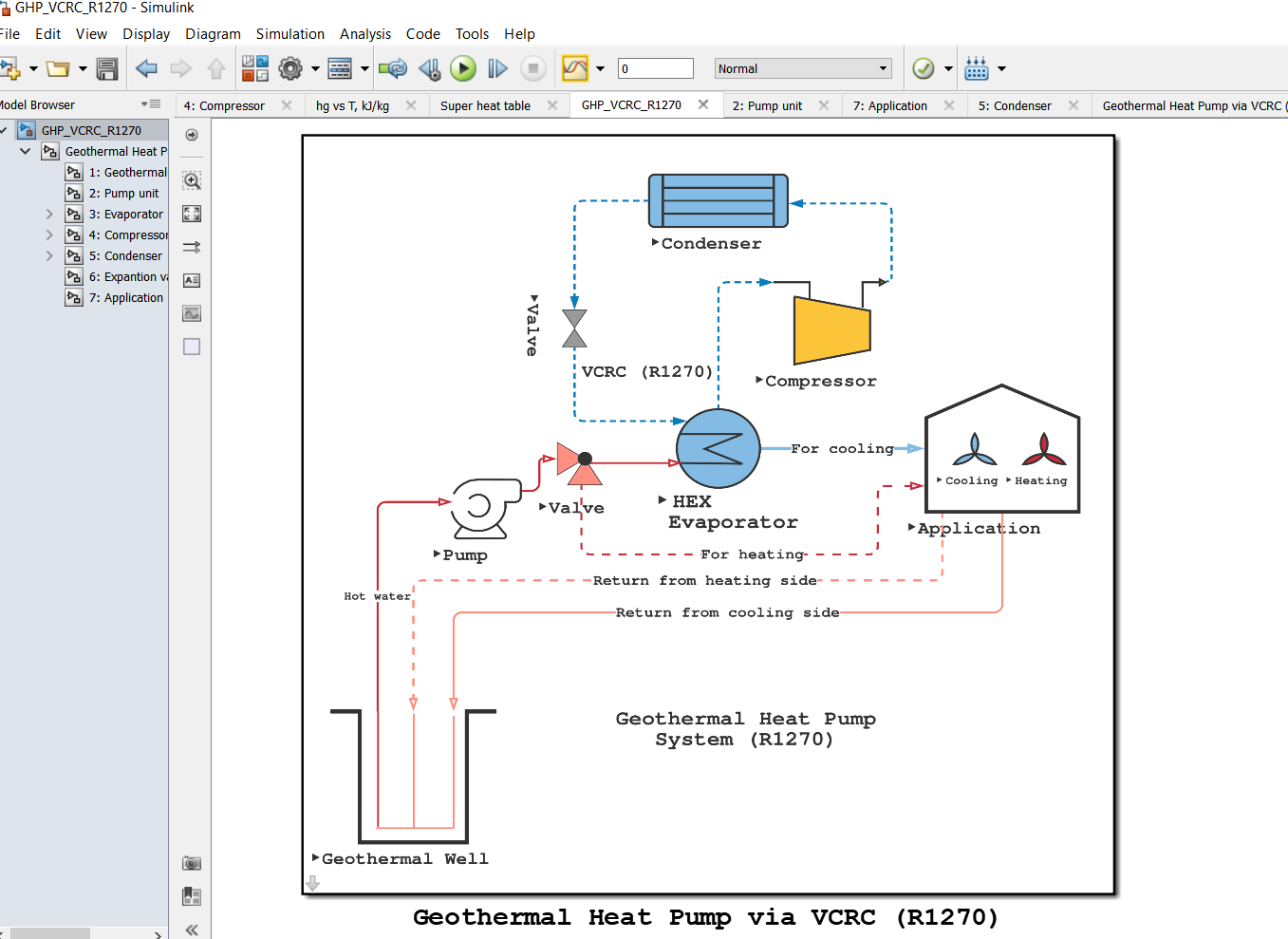

Geothermal well thermal power has been used for heating and cooling purposes. During summer, the geothermal energy will provide cooled water for the application via evaporator/HEX unit. During winter, the hot thermal energy from the geothermal well will pass directly towards the application for heating purposes. The cycle can switch manually or automatically between heating and cooling purposes. R1270 is used for the vapor compression cycle. The cycle contains:
1-Application load, TR.
2-Evaporator unit.
3-Compressor.
4-water cooled condenser unit.
5-Expansion valve.
6-Application switch.
7-Geothermal well.
8-Pump.



**Watch the tutorial video:

https://youtu.be/4gD4fvfE4ow



**MatLab-SimuLink should be used to run the model.

Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.



REDS Software Library
https://www.redslibrary.com
Kuala Lumpur Malaysia
mohamedsheraf@redslibrary.com
00601139795943
All Rights Reserved
___________________

Cooling & Heating System Based Geothermal & Heat Pump with VCRC/R1270

SKU: AUXghpvcrar1270
€620.00 Regular Price
€589.00Sale Price
  • You can get your discount code from the services page, or ask for it via chatting with Prof Dr. Mohamed A Sharaf Eldean.
