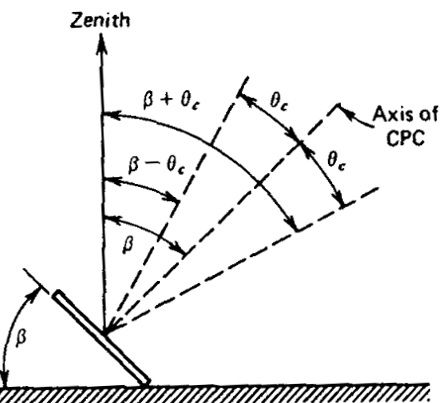

This model is about Compound Parabolic Concentrator (CPC) with horizontal plate reciver.
User must use the solar radiation model in order to calculate the solar normal beam and
diffuse irradiance, W/m2. The model would calculate the following:
1-Concentration ratio.
2-Aperature area.
3-Actual recieved energy on the reciever plate.
4-Useful energy.
etc
User can select between 2D or 3D operation. Solar radiation models are included within this model. Bird, Iqbal, Hottle, Atwater & Ball models are ready for you.



**MatLab-SimuLink should be used to run the model.


Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved.
No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub).
For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.



REDS Software Library

https://www.redslibrary.com

Kuala Lumpur Malaysia

mohamedsheraf@redslibrary.com

00601139795943


All Rights Reserved

___________________

CPC Solar Collector

SKU: AUXcpchorz
RM200.00 Regular Price
RM190.00Sale Price
  • User can edit or reform the model based on his need. Dynamic modeling is allowed.
