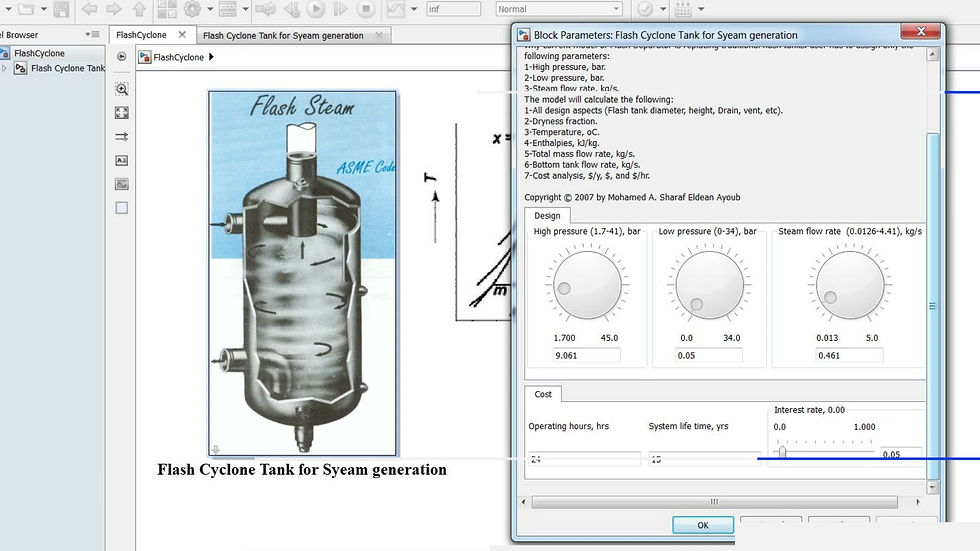

Flash tanks are designed to have an internal velocity slow enough so that the venting steam will not pick up any water. To accomplish this a large diameter tank is required. The model of Flash Separator uses a smaller diameter tank and a tangential inlet that spins the condensate around creating a low pressure area in the center of the separator. This allows the condensate to flash into the center and follow it upwards to the centrally located vent providing clean dry steam. The smaller size and clean dry steam are the reason why current model of Flash Separator is replacing traditional flash tanks. user has to assign only the following parameters:
1-High pressure, bar.
2-Low pressure, bar.
3-Steam flow rate, kg/s.



The model will calculate the following:
1-All design aspects (Flash tank diameter, height, Drain, vent, etc).
2-Dryness fraction.
3-Temperature, oC.
4-Enthalpies, kJ/kg.
5-Total mass flow rate, kg/s.
6-Bottom tank flow rate, kg/s.
7-Cost analysis, $/y, $, and $/hr.



**Watch the tutorial video via this link:

https://youtu.be/VO_RgU4tUyg

**MatLab-SimuLink should be used to run the model.



Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.



REDS Software Library
https://www.redslibrary.com
Kuala Lumpur Malaysia
mohamedsheraf@redslibrary.com
00601139795943
All Rights Reserved
___________________

Flash Cyclone Tank for Steam Generation: A Design Model

SKU: AUXflashcyclone
RM295.00 Regular Price
RM285.00Sale Price
