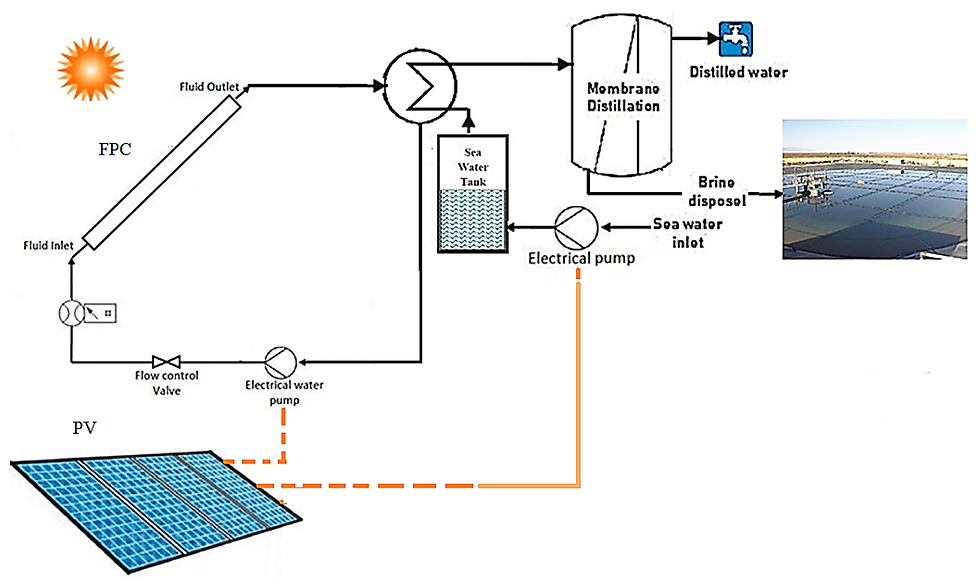

This is a performance model of the Air Gap Membrane Distillation (AGMD) Assisted by Flat Plat Solar Collector (FPC). Membrane distillation (MD) is a thermally driven separation program in which separation is enabled due to phase change. A hydrophobic membrane displays a barrier for the liquid phase, allowing the vapor phase (e.g. water vapor) to pass through the membrane's pores. The driving force of the process is given by a partial vapor pressure difference commonly triggered by a temperature difference. In air-gap MD, the evaporator channel resembles that in DCMD, whereas the permeate gap lies between the membrane and a cooled walling and is filled with air. The vapor passing through the membrane must additionally overcome this air gap before condensing on the cooler surface. The advantage of this method is the high thermal insulation towards the condenser channel, thus minimizing heat conduction losses. The user has to assign the feed inlet and temperature in order to get all performance results such as the number of pores, efficiency, flux, mass transfer, GOR, etc... The system contains the following units:
1-FPC solar field.
2-Heat exchanger unit between the FPC and the AGMD.
5-PV for electrical needs (Pumps, flow rates, etc...).
In this Flat Plate Solar Collector performance model, the user will be able to discover the performance parameters such as efficiency, fin efficiency, outlet temperature, etc. The following parameters can be calculated:
1-Mean plate temperature.
2-FPC total area.
**MatLab-SimuLink should be used to run the model.
Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub
All rights reserved.
No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub).
For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.
REDS Software Library
Kuala Lumpur Malaysia
All Rights Reserved
Flat Plate Collector Assisted AGMD Desalination: Performance Model
You can get your discount code from the services page, or ask for it via chatting with Prof Dr. Mohamed A Sharaf Eldean.
