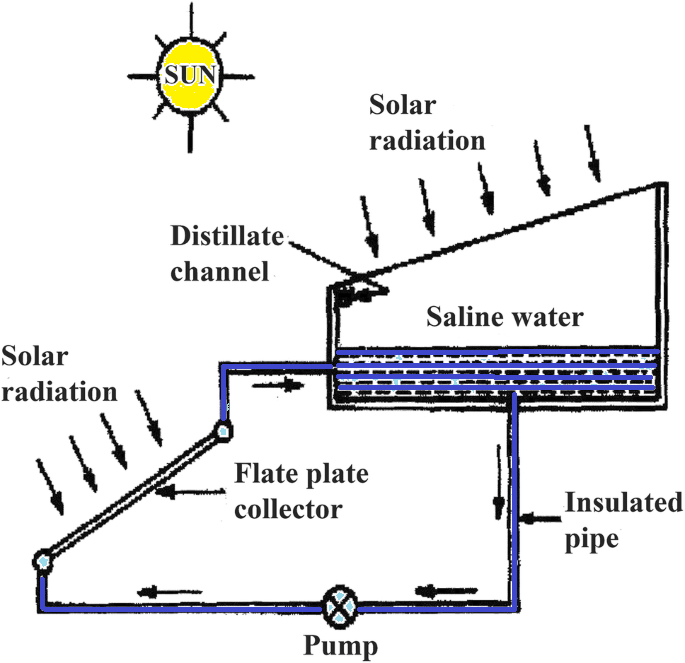

This is a performance model about Flat Plate Solar Collector Network in the assistance of the Solar Still Desalination Process. User can select between series or parallel connection
(Network type) to measure the system performance parameters. In this Flat Plate Solar Collector performance model, the user will be able to discover the performance parameters such as efficiency, fin efficiency, outlet temperature, etc. The following parameters can be calculated:
1-Mean plate temperature.
2-FPC total area.
3-Overall losses.
4-Efficiency.
5-exergy analysis.
The available models are:
1-single FPC.
2-series FPC (1 x 2). (User can increase the model in series by copying the FPC block).
3-parallel FPC (2 x 1).(User can increase the model in parallel by copying the FPC block).
4-network FPC (3 x 2).(User can reform the network).

For the solar still distillation by the use of the baffles, the User can calculate the still performance based on some general parameters. Area and design limits are considered
known. User will be able to calculate the following:
1-Temperatures, oC.
2-Heat transfer coeff's.
3-Productivity.
4-Energy equations.
5-Efficiency.

**Watch the tutorial video:

https://youtu.be/gwEJZz3q2h8



**MatLab-SimuLink should be used to run the model.



Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.



REDS Software Library
https://www.redslibrary.com
Kuala Lumpur Malaysia
mohamedsheraf@redslibrary.com
00601139795943
All Rights Reserved
___________________

Flat Plate Solar Network Assisted Solar Still Desalination: Performance Model

SKU: SDSfpcnwstper
RM520.00 Regular Price
RM509.60Sale Price
  • You can get your discount code from the services page, or ask for it via chatting with Prof Dr. Mohamed A Sharaf Eldean.
