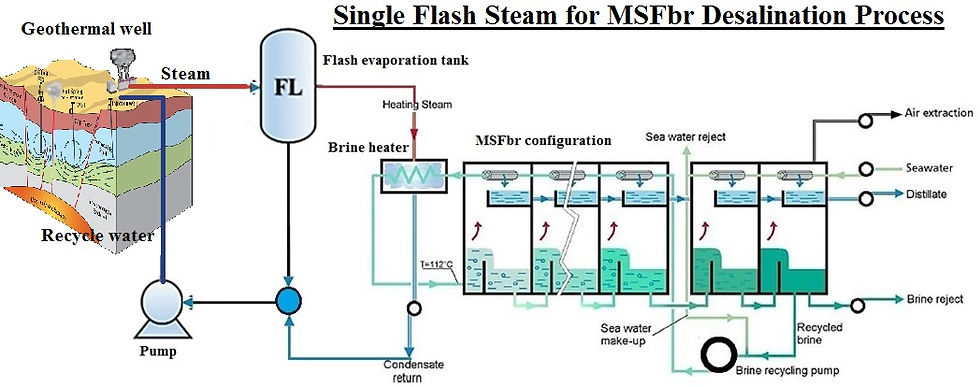

GeoThermal plant (Single Flash Cyclone) is operated in order to power on the Multi Stage Flash  desalination plant. User can assign the total plant productivity. No power generation developed through this model. Its operated for only desalination. The plant consists of:
1.Geothrmal well
2.Pumping unit.
3.Flashing tank.
4.MSFbr.
5.Cost analysis



MSF-BR desalination plant. User should assign the following:
1-Sea water temperature oC.
2-Top brine temperature oC.
3-Brine blowdown temperature oC.
4-Feed seawter 1st splitter ratio.
5-Seawater and brine blowdown salinity ratios kg/kg.
6-Number of stages.
7-Tubes diameter for each section m.
8-Pumps efficiency 0.00.

Dynamic model is considered as V2 file. User can set the simulation time as "inf" and change the
input data based on his need.

**Watch the video via:

https://youtu.be/ZyaZfWOj22g


**MatLab-SimuLink (64bit) should be used to run the model.



Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.



REDS Software Library

https://www.redslibrary.com

Kuala Lumpur Malaysia

mohamedsheraf@redslibrary.com

00601139795943


All Rights Reserved

___________________

Geothermal Single Flash Steam for MSFbr Desalination

SKU: GDSsfsmsfbr
RM405.00 Regular Price
RM380.00Sale Price
  • User can reform the model based on his need. Dynamic modeling is allowed. User should install Matlab/Simulink (at least R2012a version) before run the model.
