Design aspects for MSF-BR desalination plant. User should assign the following:1-Sea water temperature oC.2-Top brine temperature oC.3-Brine blowdown temperature oC.4-Feed seawter 1st splitter ratio.5-Seawater and brine blowdown salinity ratios kg/kg.6-Number of stages.7-Tubes diameter for each section m.8-Pumps efficiency 0.00.
User will drive out his design data with ultimate stream allowance. Thence, user can reform the model based on his need.

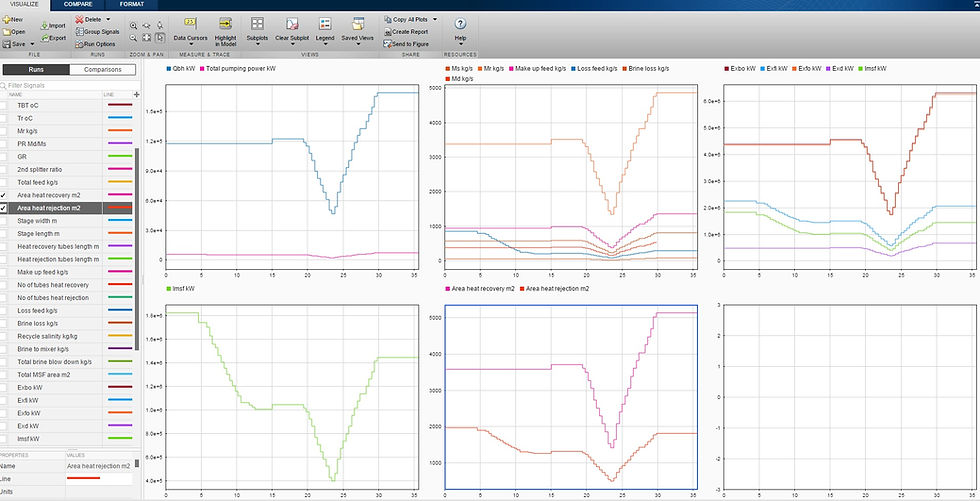

Dynamic model is considered as V2 file. User can set the simulation time as "inf" and change theinput data based on his need.
**MatLab-SimuLink (64bit) should be used to run the model.
email us for the password (firstname.lastname@example.org)
Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub
All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.
Suez University, Suez EgyptFaculty of Petroleum & Mining Engineering
Egineering Science Dept
watch the tutorial at:
All Rights Reserved
Multi Stage Flash Desalination Brine Recycle
MSF-BR configuration with brine heater unit.
Simulink (64bit) should be used. User can reform the model based on his need.Dynamic model is considered as V2 file. User can set the simulation time as "inf" and change theinput data based on his need.
