This system is about coupling Photovoltaic and pumping systems for irrigation and other uses. The whole system is in performance mode. The hybrid system contains the following:
1-Photovoltaic with batteries.
2-Pump.
3-Motor.
Furthermore; the user can go through the calculation model for the centrifugal pump, which the user can calculate the following:
-Power-Torque-Pressure difference-Actual pump head based on the addressed losses
-Specific speed: to decided the flow pump type (radial, mixed, or axial)-Hub diameter
-Shaft diameter

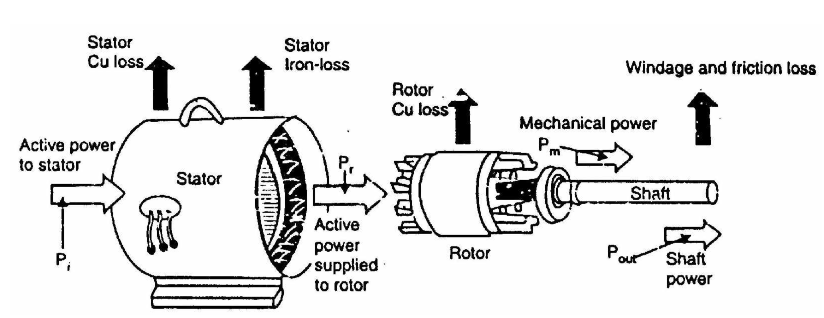

-3 Phase induction motor model has been added to the system. Users can select dynamically between PV and the motor application for powering on the pump. The user will be able to calculate the flow rate based on the power load from the PV. The dynamic load is also allowed. User can change the solar radiation to examine the effect on system performance.
-Controlled drip system is considered for the irrigation system to regulate the flow rate acorss the plantation field. The drip controller has been used only in dynamic version.



**MatLab-SimuLink (64bit) should be used to run the model.



Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.



REDS Software Library
https://www.redslibrary.com
Kuala Lumpur Malaysia
mohamedsheraf@redslibrary.com
00601139795943
All Rights Reserved
___________________

Photovoltaic Pumping System: Performance Model

SKU: AUXpvpumpper
€115.00 Regular Price
€112.70Sale Price
  • You can get your discount code from the services page, or ask for it via chatting with Prof Dr. Mohamed A Sharaf Eldean.
