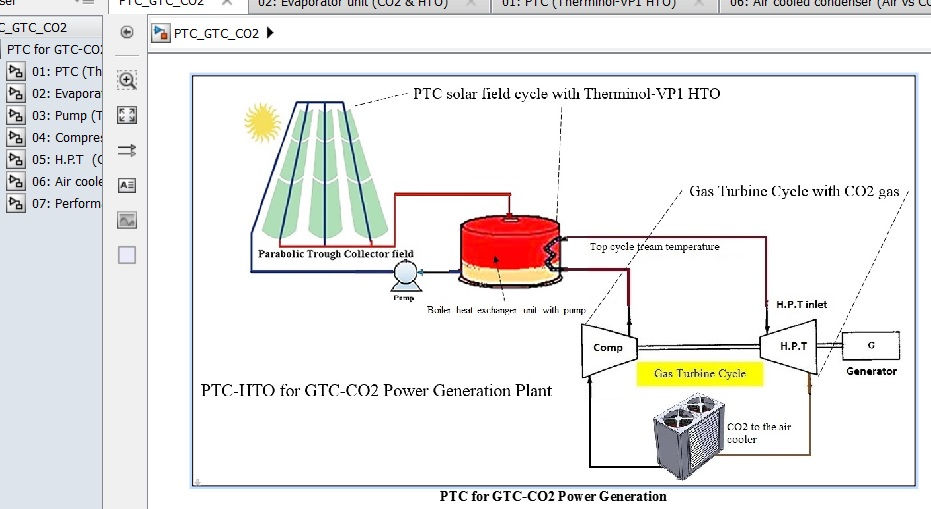

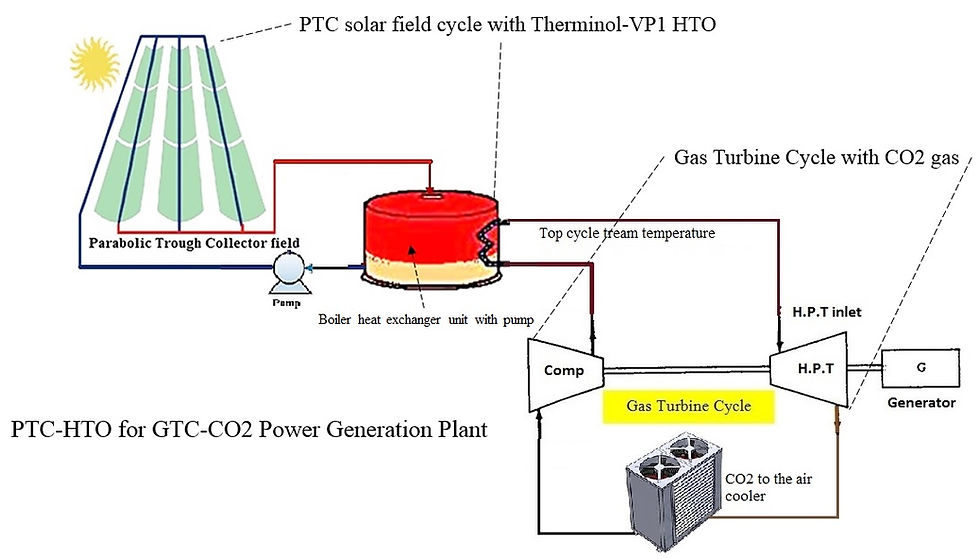

This model is about power genergation by the use of Parabolic Trough Collector system (PTC) combined with Gas Turbine Cycle (GTC) with CO2 working gas. Therminol-VP1 heat transfer oil is used through the PTC cycle. User can assign the grid needed power in order to obtain all design aspects such as:
1-PTC field design (area, Loops, etc..).
2-Design aspects for GTC.
3-Energy, and Exergy streams are calculated.
4-CO2 fluid is used through the GTC.
5-Therminol-VP1 HTO is used through the PTC cycle.

All cycles are prepared for dynamic and fixed point modeling. All cycles are designed for electric power generation.



**Watch the video:

https://www.youtube.com/watch?v=6MVdqH_KoYE



**MatLab-SimuLink should be used to run the model.



Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests,
write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.



REDS Software Library

https://www.redslibrary.com

Kuala Lumpur Malaysia

mohamedsheraf@redslibrary.com

00601139795943


All Rights Reserved

___________________

PTC for GTC with CO2 Power Generation

SKU: SDSptcgtcco2
RM470.00 Regular Price
RM430.00Sale Price
  • User can reform the model based on his need. Dynamic modeling is allowed. Signal generator block can be used. Install Matlab/Simulink should be installed first.
