A reciprocating compressor or piston compressor is a positive-displacement compressor that uses pistons driven by a crankshaft to deliver gases at high pressure. The intake gas enters the suction manifold, then flows into the compression cylinder where it gets compressed by a piston driven in a reciprocating motion via a crankshaft, and is then discharged. Applications include oil refineries, gas pipelines, chemical plants, natural gas processing plants and refrigeration plants. The model is made for single cylinder (single or double acting) gas compressor.12 working gases are available in this model.

1-Monatomic gases.
2-diatomic gases.
3-Polyatomic gases.



**Watch model video via this link:

https://www.youtube.com/watch?v=m4U8BQMde5k&t=1s



**MatLab-SimuLink should be used to run the model.

Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved.
No part of this work may be reproduced, distributed,
or transmitted in any form or by any means, including photocopying,
recording, or other electronic or mechanical methods, without the prior written permission of the
publisher (Mohamed A. Sharaf Eldean Ayoub).
For permission requests,
write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.



REDS Software Library

https://www.redslibrary.com

Kuala Lumpur Malaysia

mohamedsheraf@redslibrary.com

00601139795943


All Rights Reserved

___________________

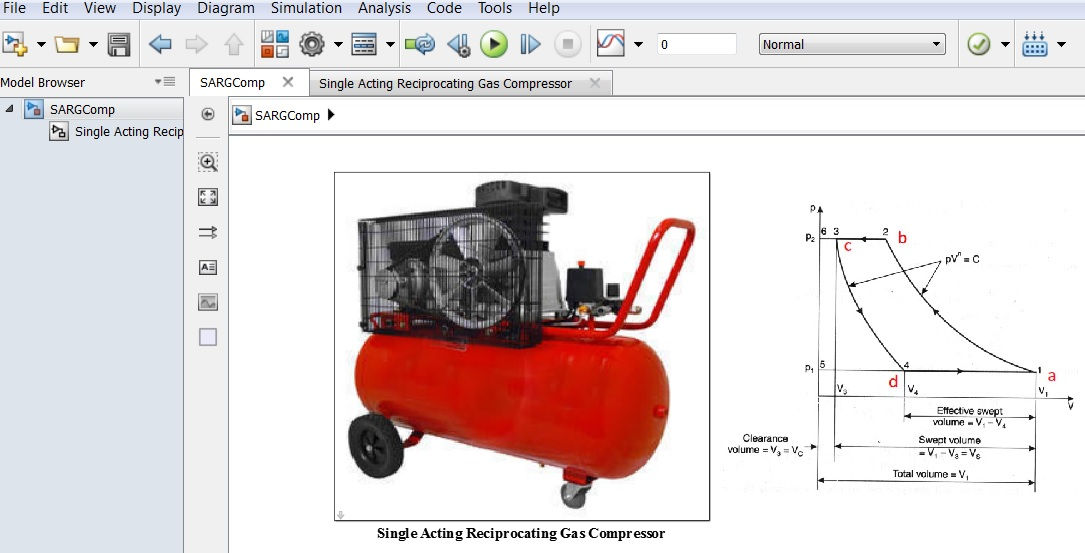

Single Cylinder Reciprocating Gas Compressor

SKU: AUXscrgcomp
RM235.00 Regular Price
RM230.00Sale Price
  • User can reform the model bsed on his need. Dynamic modeling is allowed.
