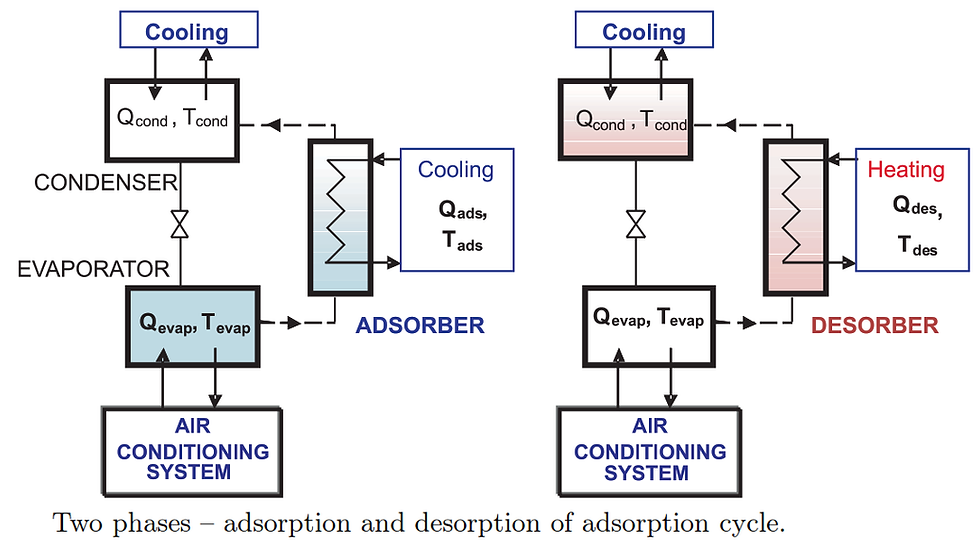

Solar Adsorption Refrigeration Cycle (SARC) system is similar to vapor compression system in which compressor is replaced by solar heat driven adsorption bed. The adsorption bed is integrated with a flat plate solar collector (FPC/Bed REactor) and contains a porous adsorbent medium (low grade charcoal). The adsorbed content of refrigerant varies cyclically, depending on the adsorbent temperature and system pressure, which varies between a maximum limit set by the condensation pressure and a minimum limit imposed by the evaporation pressure. Refrigerant used is Methanol (CH3OH) as it has greater affinity towards the salt (Activated carbon). This model is a design model for Solar Adsorption Refrigeration Cycle (SARC). Solar flat plate collector is attached to the bed reactor for heat generation process. The cycle contains the following:
1-Evaporator.
2-Bed reactor tank.

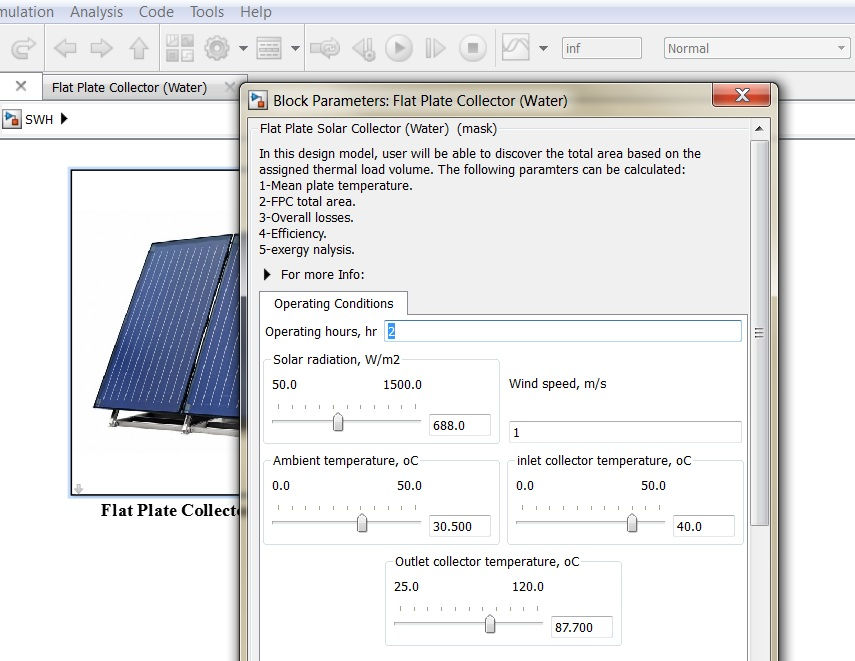

3-Solar collector (FPC/water).
4-Condenser.
5-Expansion valve.
6-Activated carbon is used as a bed salt.
7-Methanol CH3OH is used as a main refrigerant.

**Watch the tutorial video via this link:

https://www.youtube.com/watch?v=dAJkQay3jPI



**MatLab-SimuLink should be used to run the model.



Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved.
No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.



REDS Software Library
https://www.redslibrary.com
Kuala Lumpur Malaysia
mohamedsheraf@redslibrary.com
00601139795943
All Rights Reserved
___________________

Solar Adsorption (AC35-CH3OH) for Refrigeration Systems

SKU: AUXsarc
RM575.00 Regular Price
RM565.00Sale Price
  • You can get your discount code from services page, or ask for it via chatting with
    Prof Dr Mohamed A Sharaf Eldean.
