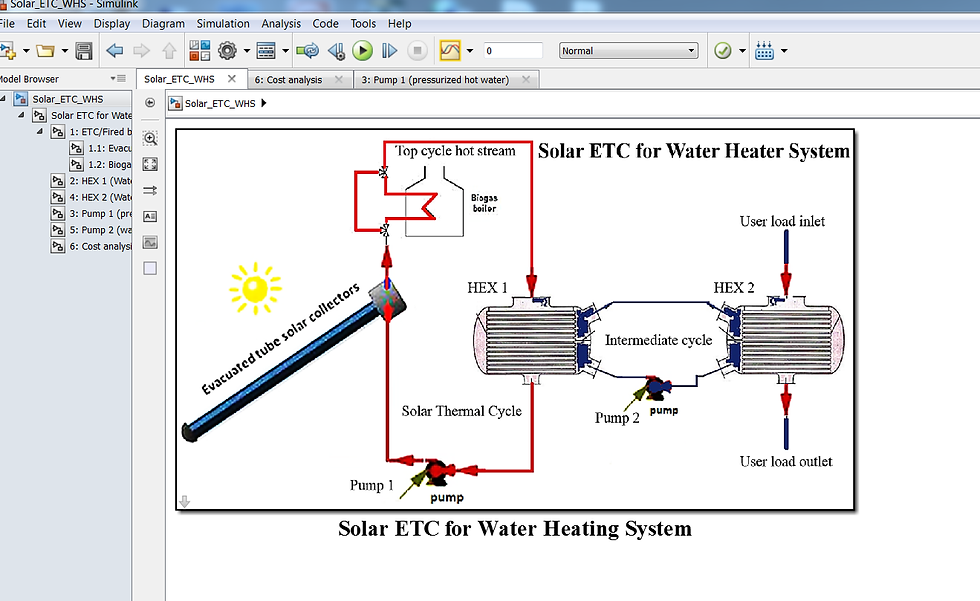

In this Evacuated tube Solar Collector (ETC-Water working fluid) performance model, the system is attached to an intermediate heat exchanger. The system is used to generate hot steam via heat exchanger tank. User will be able to discover the total area based on the assigned thermal load volume. Solar radiation will effect on the system performance. The following parameters can be calculated:
1-Mean plate temperature.
2-ETC temperature difference.
3-Overall losses.
4-Efficiency.
5-exergy analysis.
6-System total thermal power.
7-Total system area, design operating conditions and flow rates.
8-Heat exchangers design.
9-Cost analysis.

The system main units are:
1-ETC.
2-Fire boiler for recovery system.
3-Heat exchanger.
4-Pumping system.
5-Load.
6-Water working fluid.

**Watch the video via this link:

https://youtu.be/EhKKP_4VOTk



**MatLab-SimuLink should be used to run the model.



Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.



REDS Software Library
https://www.redslibrary.com
Kuala Lumpur Malaysia
mohamedsheraf@redslibrary.com
00601139795943
All Rights Reserved
___________________

Solar Evacuated Tube Collector for Water Heating Systems: Performance Model

SKU: AUXsolaretcwhsper
RM475.00 Regular Price
RM460.00Sale Price
  • You can get your discount code from services page, or ask for it via chatting with
    Prof Dr Mohamed A Sharaf Eldean.
