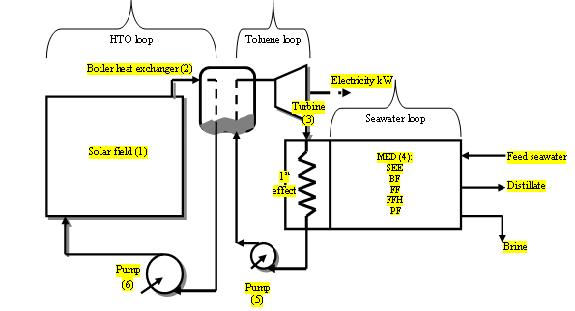

All MED configurations are contained in one folder to be operated via Solar Organic Rankine Cycle. All types of MED such as:
1-Backward feed configuration.

2-Forward feed configuration.

3-Forward feed with feed heaters configuration.

4-Parallel feed configuration.
Toluene is used as a working fluid through the Rankine cycle. Therminol-VP1 is used through the solar PTC.

Another three cycles are contatined and considered:

5-Solar ORC for MED mechanical vapor compression.

6-Solar PTC with molten salt for Steam (water) Rankine Cycle with MED-PF configuration.
7-Solar PTC with molten salt for Organic Rankine Cycle (Toluene) with MED-PF configuration.

Download it and save more than 800RM!!

All cycles are prepared for dynamic and fixed point modeling. All cycles are designed for desalination and electric power generation.
**Watch tutorials via this link:


**You can request a discount coupon from us before download.
**MatLab-SimuLink should be used to run the model.

Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub
All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.


REDS Software Library

Kuala Lumpur Malaysia


All Rights Reserved


CSP for ORC-MED Configurations

SKU: SDSsorcmedall
€185.00 Regular Price
€175.75Sale Price
  • User has the ability to reform the model based on his need. Matlab/Simulink 2016 (64bit) is used.
