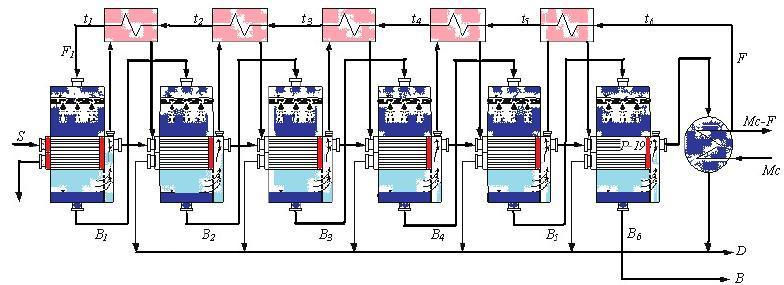

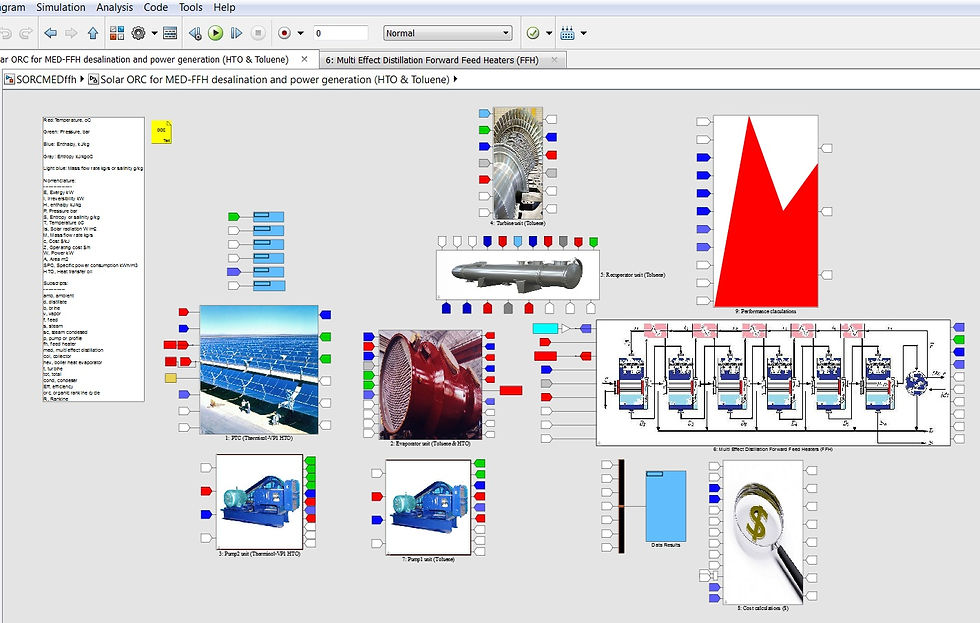

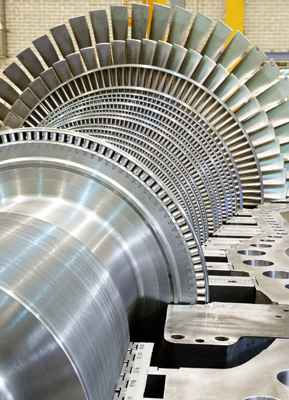

? This model is designed to calculate the power electricity and design limits for a specified MED-FFH configuration. The capacities are operated by Solar Organic Rankine cycle (SORC). The system consists of PTC solar field, boiler heat evaporator, pump unit and Therminol-VP1 heat transfer oil (HTO). Rankine cycle consist of Turbine, 1st MED effect for heat rejection, pump unit, and Toluene working fluid for power generation. MED-FFH configuration is assumed to desalinate the seawater based on the exhausted heat from turbine unit.? Solar field would harvest a suitable energy gain from the sun then transferring the huge heat from HTO to the boiler evaporator (Toluene). Dry saturated steam (Toluene) would power on the turbine unit generating the electricity. The rest of the steam (superheat) will reject its heat via thermal transfer to the MED-FFH and pumped again (saturated liquid-Toluene) to the evaporator then turbine unit.



**Request the model coupon before download.

**MatLab-SimuLink 64bit should be used to run the model.
email us for the password (msherafeldin@gmail.com)


Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub
All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.



REDS Software Library

https://www.redslibrary.com

Kuala Lumpur Malaysia

mohamedsheraf@redslibrary.com

00601139795943

All Rights Reserved

___________________

Solar ORC for MED-FFH Desalination & Power Generation

SKU: SDSsorcmedffh
RM450.00 Regular Price
RM400.00Sale Price
  • Solar thermal power is used to power on the ORC. The rest of steam is used for the 1st effect of the MED-FFH configuration.
