In this model, user can discover the design and performance aspects of Solar PV pumping unit. Furthermore; user can go through the calculation model for centrifugal pump, which the user can calculate the following:
-Power
-Torque
-Pressure difference
-Actual pump head based on the addressed losses
-Specific speed: to decided the flow pump type (radial, mixed, or axial)
-Hub diameter
-Shaft diameter

Solar PV model is simulated based on two concepts: (a) Instant solar radiation W/m2, (b) Total daily solar radiation kWh/m2. PV model is run based on the load from the pumping unit. It can calculate the following:

-Sort curcuit cuurent

-Short curcuit voltage

-Max current and voltage

-Cell and module efficiencies

-Module weight and dimensions

-FOB price, $/module and total PV costs

-Number of cells and modules

-Cell, module, total areas

-Batteries calculations

-etc



Video:

https://youtu.be/bQzlqzal058

https://www.youtube.com/watch?v=ChOlK6bTvzA


**MatLab-SimuLink should be used to run the model.

email us for the password (msherafeldin@gmail.com).



Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.



REDS Software Library

https://www.redslibrary.com

Kuala Lumpur Malaysia

mohamedsheraf@redslibrary.com

00601139795943



All Rights Reserved

___________________

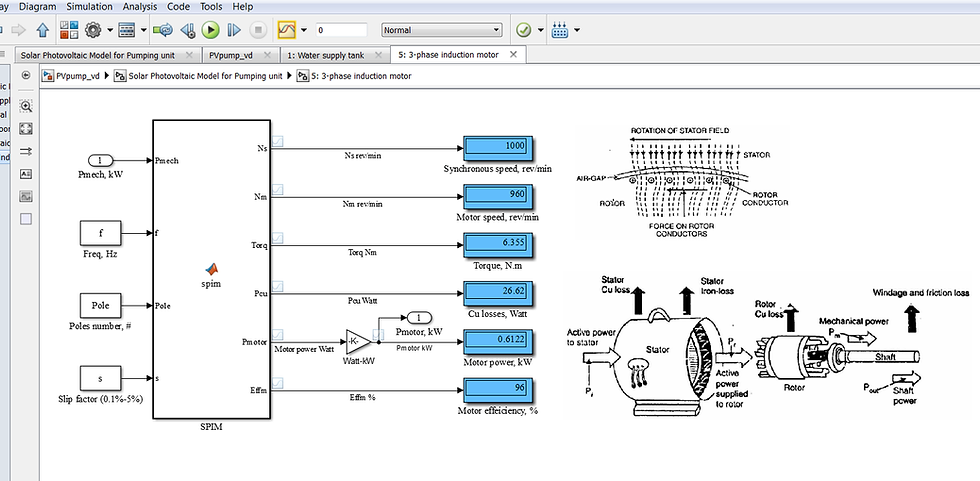

Solar PhotoVoltaic for Pumping Unit

SKU: SDSpvpump
RM185.00 Regular Price
RM160.00Sale Price
  • User can reform the model based on his need.

  • Solar PV model is used and linked with Pump unit model.
