This is a performance model for solar still distillation by the use of Flat Plate Solar Collector. PCM storage medium is used at the Still bottom. At the same time, heat exchanger coil is used to enhance the still performance. Moreover, the glass cover is cooled down in order to increase the rate of condensation on the glass cover. User can calculate the still performance based on some general parameters. Area and design limits are considered known. User will be able to calculate the following:
1-Temperatures, oC.
2-Heat transfer coeff's.
4-Energy equations.

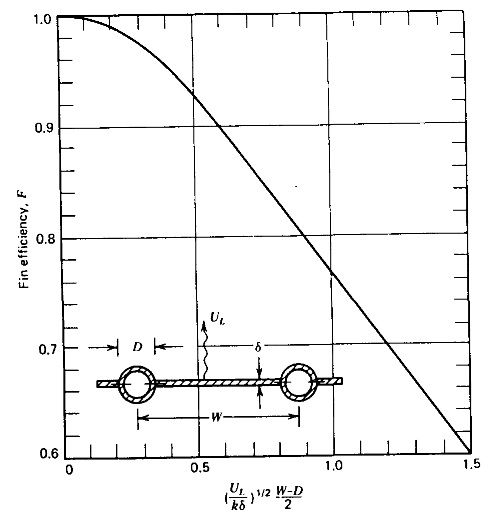

In this Flat Plate Solar Collector design model, user will be able to discover the total area based on the assigned thermal load volume. The following paramters can be calculated:
1-Mean plate temperature.
2-FPC total area.
3-Overall losses.

**Watch the tutorial video via this link:

For Dynamic Modeling:

**MatLab-SimuLink should be used to run the model.

Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.


REDS Software Library

Kuala Lumpur Malaysia


All Rights Reserved

Solar Still with FPC_PCM Storage

SKU: DESstfpcpcm
€155.00 Regular Price
€147.25Sale Price
  • You can get your discount code from services page, or ask for it via chatting with
    Prof Dr Mohamed Sheraf.
