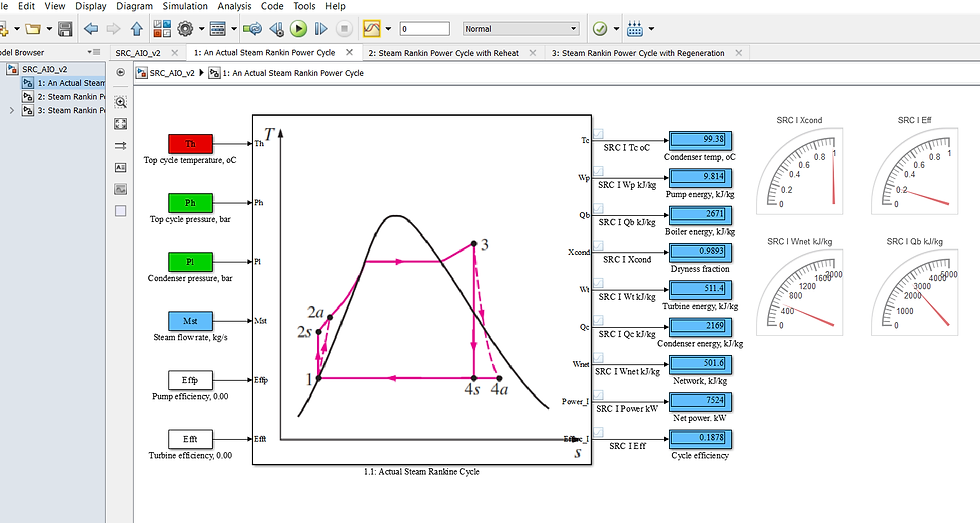

This model is about power generation by the use of the Steam Rankine Power Cycle (SRC) by the use of water working fluid. Users can assign the grid needed power. All types of steam Rankine cycles have been adopted in this model. User can select between the following cycles in one model:
1-SRC actual basic cycle (Boiler, Turbine, Condenser, Pump).
2-SRC actual with reheat.
3-SRC actual with regeneration (Feed heaters=1 open + 2 closed).

All cycles are prepared for dynamic and fixed-point modeling. Thermophysical properties of water steam are contained in the steam table (Excel sheet). All cycles are designed for electric power generation. Steam table (saturation, superheat, & subcooled) was performed via ANN for better accuracy.
Dynamic modeling is allowed.



**MatLab-SimuLink should be used to run the model.



Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.



REDS Software Library
https://www.redslibrary.com
Kuala Lumpur Malaysia
mohamedsheraf@redslibrary.com
00601139795943
All Rights Reserved
___________________

Steam Rankine Power Cycles (All Configurations)

SKU: AUXsrcaio
RM590.00 Regular Price
RM578.20Sale Price
  • You can get your discount code from the services page, or ask for it via chatting with Prof Dr. Mohamed A Sharaf Eldean.
