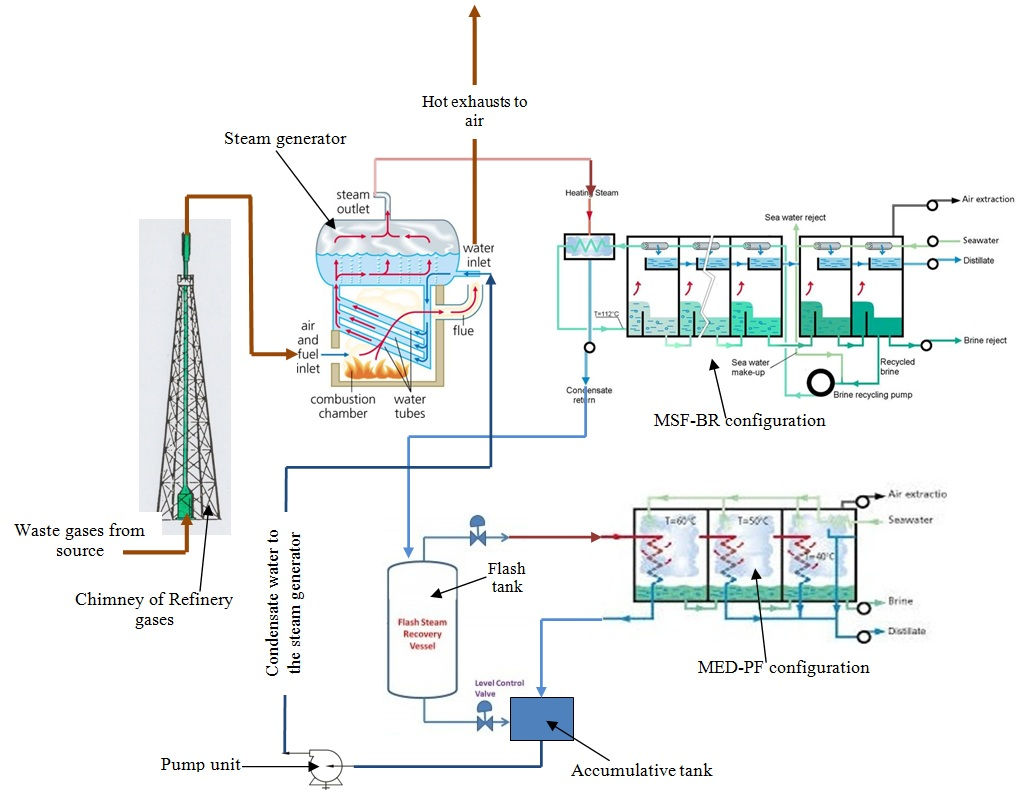

In this model, refinery waste gases are utilized as a main source of fuel in order to power on thermal desalination processes (MSF/MED). The plant consists of the following:1-Waste gases source, 2-Steam generator, 3-Brine heater, 4-MSF, 5-Flash tank, 6-MED, 7-Accumulative tank, 8-Pump.
Energy, Exergy, physical and design aspects are performed.In this sub-Model

1.User should specify the ambient temperature in degree Celsius.

2.Also plant productivity should be specified (Md, m3/day).

3.Inlet turbine temperature, oC (Dry saturated).

4.Condensed temperature in the MED 1st effect, oC.



**Watch the model video via this link:

https://www.youtube.com/watch?v=mUbqHJGFMA0

**MatLab-SimuLink should be used to run the model.
email us for the password (msherafeldin@gmail.com)
Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub
All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.

Suez University, Suez EgyptFaculty of Petroleum & Mining Engineering
Egineering Science Dept
mohammed.eldeen@suezuniv.edu.eg, mwahab31@yahoo.com
00601139795943
All Rights Reserved
___________________

Waste Gases for Thermal MSF/MED Desalination Plant

SKU: WGmsf_med
RM450.00Price
  • Learn how to use oil refinery waste gases for massive water desalination.

  • User has the abaility to reform the model based on his need.
