This is a full report (Design & Analysis) about the process description and governing equations related to the Solar adsorption Air Conditioning (SAAC) system is similar to the vapor compression system in which the compressor is replaced by a solar heat-driven adsorption bed. The adsorption bed is integrated with a flat plate solar collector and contains a porous adsorbent medium (low-grade charcoal). The adsorbed content of refrigerant varies cyclically, depending on the adsorbent temperature and system pressure,
which varies between a maximum limit set by the condensation pressure and a minimum limit imposed by the evaporation pressure. The refrigerant used is NH3 as it has a greater affinity towards salt (CaCl2). This model is a design model for Solar Adsorption Air conditioning System (SAAC). Solar flat plate collector is attached to the bed reactor for the heat generation process. The cycle contains the following:
2-Bed reactor tank.
3-Solar collector (FPC/water).
5-Expansion valve.
6-CaCl2 is used as a bed salt.
7-NH3 is used as the main refrigerant.
The report is in Word and PDF files and addressed the following:
2-Process description.
3-Mathematical model.


The following link is related to the matlab/simulink model:


Copyright © 2007 by Mohamed A. Sharaf Eldean Ayoub

All rights reserved. No part of this work may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher (Mohamed A. Sharaf Eldean Ayoub). For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.


REDS Software Library
Kuala Lumpur Malaysia
All Rights Reserved

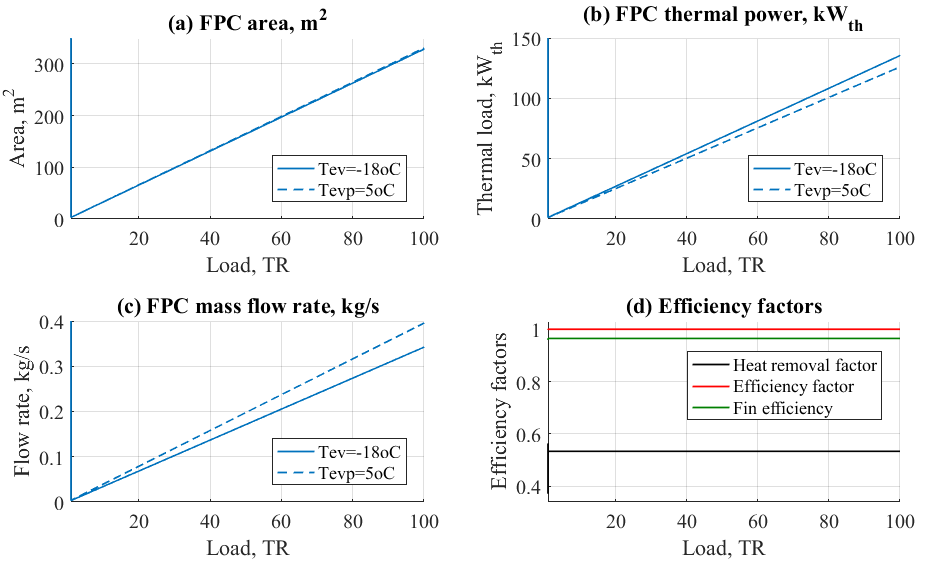

Design Analysis of Solar FPC Adsorption System: The Report

SKU: RPfpccaclanh3ads
€210.00 Regular Price
€199.50Sale Price
